PREFACE

WHAT IS TURBINE AND WHAT MAKES IT SPECIAL?

Thank you for using the TURBINE plug-in. We would love to give you some important usage tips before we get into details:

Turbines in general might take a really long time to only rise to idle rpms. For instance, we have a nuclear reactor turbine in our presets, which in reality takes twenty long minutes to get from 0% to 60% (idle) rpm. You can, of course, use the plug-in in unrealistic or experimental ways; in fact, we encourage you to do so. But keep in mind that all presets might sound as small as vacuum cleaners if the THRUST gets raised too quickly. If you have a scene with a nuclear power plant starting up which is shorter than twenty minutes, do not hesitate to only use a small portion of the available 0% to 100% THRUST range rather than raising it more quickly.

Speaking of which: There is no need to always use the full range of 0% to 100%. Both are not used that much in reality. For example, civil planes typically only utilize up to 100% THRUST during their startup procedure. Again, please try to use only portions of the available range of rpms, this will most likely bring you to results more interesting and more usable instead of raising the THRUST quicker.

Something similar for the SIMULATOR actions:

Keep in mind what the actual speeds of the objects are that you are going to reproduce. Faster is by far not always nicer or more powerful sounding compared to slower speeds. The maximum speed or cruise speed is noted in the description within the preset browser as a reference.

Unrealistic maneuvers, for example on spot 180° turns, will result in unrealistically sounding results. Try to draw smooth flight paths and avoid abrupt and instant changes in direction or position.

Minimum System Requirements

WINDOWS: Windows 8 (64-bit), 8 GB RAM, Intel® Core™ i5 (relatively recent), OpenGL 2.1 capable GPU
MAC: macOS 10.13 (64-bit), 8 GB RAM, Apple Silicon or Intel® Core™ i5 (relatively recent), OpenGL 2.1 capable GPU

Installation

After downloading and opening the installer of TURBINE please follow the on-screen instructions to install the application.

THE MANUAL WILL BE COPIED HERE:
WINDOWS: C:\Program Files\BOOM Interactive\Turbine
MAC: /Applications/BOOM Interactive/Turbine

iLok Registration

During the first start of TURBINE after installation, the iLok registration window pops up. TURBINE is licensed using the PACE Licensing Platform. You need to have an iLok account to use it, however setting up an iLok account is free. You will find all necessary information on how to setup your account on www.ilok.com. You can either directly authorize your computer (machine authorization) or use a 2nd or higher generation iLok hardware dongle. A second or third generation iLok (iLok2 or iLok3) is a product of PACE that can be purchased at www.ilok.com or from any participating music retailer.

Next: please download the iLok License Manager at www.ilok.com.

After your purchase, you automatically receive an order confirmation from us containing the download link for the installer plus a 30 digits long iLok activation code (e.g. 1234-1234-1234-1234-1234-1234-1234-12).

Now you are ready to go!

Uninstalling

To remove the plug-in from your system, including its presets and settings, follow the step-by-step guide in our FAQ: How do I uninstall BOOM plug-ins?

If you want to use the plug-in on another computer, deactivate the license in the iLok License Manager first.

Quick Start

Since the TURBINE produces sound rather than processing incoming audio material, in most hosts the TURBINE will be shown as a „Virtual Instrument“. This means you need to open an instrument track instead of an audio track. Select the TURBINE plug-in under virtual instruments to open it.

Raising the THRUST on the left side will let you start-up the F/A-18 Hornet, the engine TURBINE loads on startup.

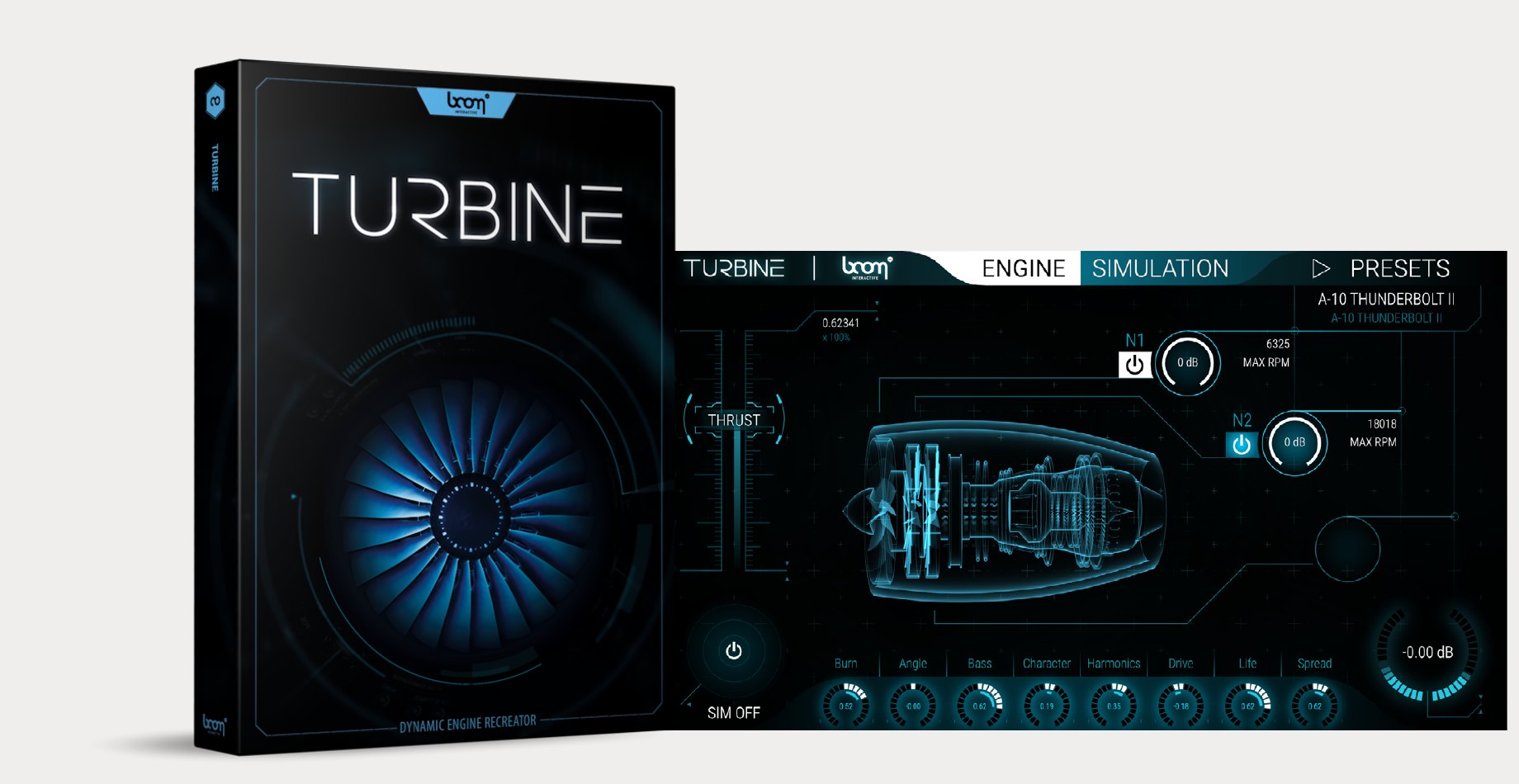

GUI Overview

Just in case you will not read this again, there is one basic rule to keep in mind:

Header

The header will be the same in all views. From left to right you will find the following:

TURBINE | BOOM

The name of the plug-in TURBINE combined with the “BOOM Interactive“-logo will bring you to the credits, licenses and the plug-in version.

Engine

Open when plug-in has been instantiated. The ENGINE tab is the first you will see after opening the plug-in. Here you can change the main parameters and sonic behaviors of the selected turbine engine.

Simulation

Clicking on SIMULATION will bring you to the SIMULATION tab with all the parameters you can change for the ENGINE in motion.

Presets

The PRESETS allows you to load various different airplane engine models as well as industrial turbines or other presets, such as vacuum cleaners, turbine starters, rockets etc.

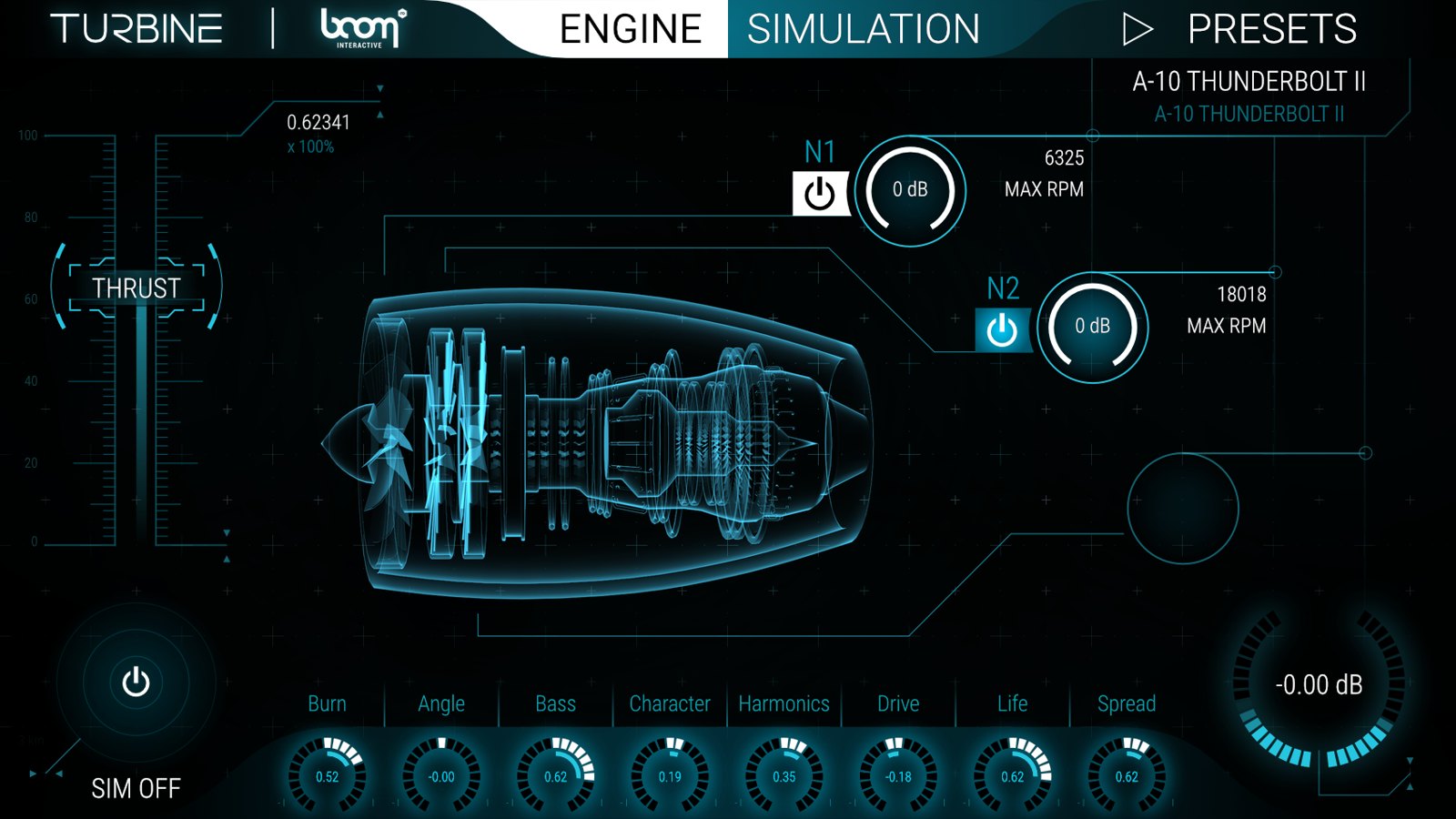

Engine

When the plug-in has been opened, the ENGINE tab will be shown. The following parameters are available:

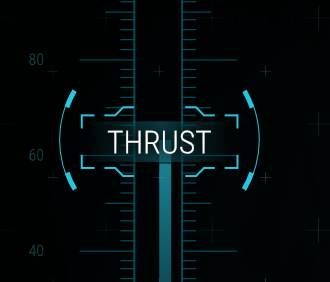

Thrust

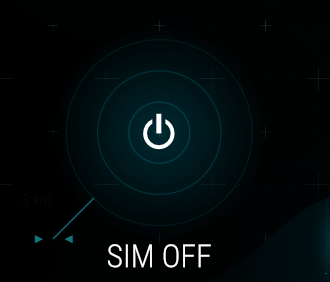

SIM On / Off

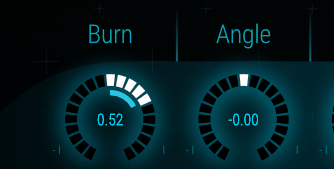

Sound Controls

Burn

This determines how much fuel is given into the combustion chamber. If the turbine has afterburn, BURN will get very aggressive when turned up to 1. Note that by far not all airplanes and of course no none-plane turbines have an afterburner.

Angle

Changing the listener perspective or the angle relative to the engine changes the sound. In general it mostly results in a more tonal sonic character when the engine is turned towards a front view (ANGLE is turned to the right toward plus 1) and a noisier sonic character when the listener moves to the back of the engine (ANGLE is turned to the left towards minus 1). Even though not represented visually, plus 1 (right) equals a 90° turn to the front, which means the listener’s position is in front of the engine, whereas minus 1 (left) equals a 90° turn to the back, which means the listener is positioned at the back of the engine. You can simulate full 360° cycles by going from centered 0 to minus 1, then to plus 1 and back to the centered 0.

Bass

Adds low end for a more rumbling sound. This is specifically useful to get more variations during the SIMULATION, but also can beef up the close up view when SIMULATION is turned off.

Character

The CHARACTER can alter different things. If not stated otherwise in the PRESET-Description, CHARACTER alters the strength of resonances which mostly occur when the engine is on load. Some presets use CHARACTER to alter other sonic behavior of the engine as explained in the PRESET-Description.

Harmonics

Adds or subtracts overtones of only the tonal components of the engine.

Drive

Adds or reduces distortion.

Life

With LIFE you can push or lower the strength of the modulation within the engine. More LIFE can be more interesting, especially for longer scenes at static rpm values, whereas for more modern, technologically advanced sound characters or for creating loops it may help to flatten natural modulations.

Spread

Alters the stereo width of the engine. This function has no effect during the SIMULATION. Experiment as to what suits your needs best.

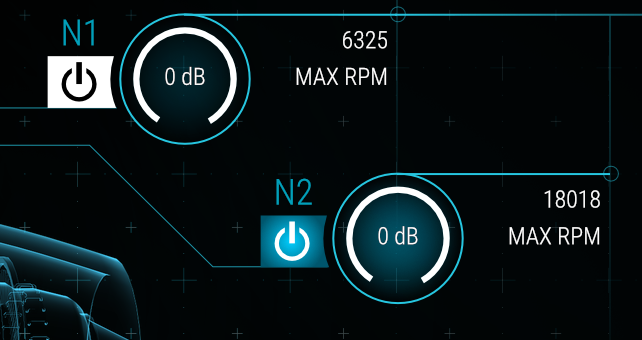

N1, N2, N3 and CBC

Nx On / Off and CBC On / Off

The power knob just next to each of the stages Nx and the combustion chamber CBC lets you activate or deactivate the respective stage. This alone will result in a very different sonic character of the engine.

Nx Volume and CBC Volume

The circle with the initial 1.00 lets you create new “mixes” of the stages by lowering the volume of one or more stages or the combustion chamber.

Nx Max RPM

Again, something that drastically changes the sonic behavior: For instance, you can let N2 rise faster with higher THRUST levels or – if the relations are kept – simply change the highest tone at 100% THRUST.

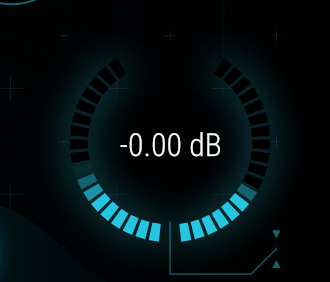

Meter

Volume

The TURBINE features a soft clipper before any audio goes into the channel of your host. The VOLUME lets you alter the output PRE(!) soft clipper. You can lower the VOLUME in dB to get a more dynamic and with some presets less aggressive sound. But you can also add extra gain pre soft clipper to get a denser and more distorted sound.

Preset Names

In the upper right corner, just below the PRESETS button you can see which presets are currently selected for both the “ENGINE” page and the SIMULATION page. Depending on which tab is selected (currently the ENGINE tab), the preset of either the ENGINE (upper text) or the SIMULATION (lower text) will be highlighted.

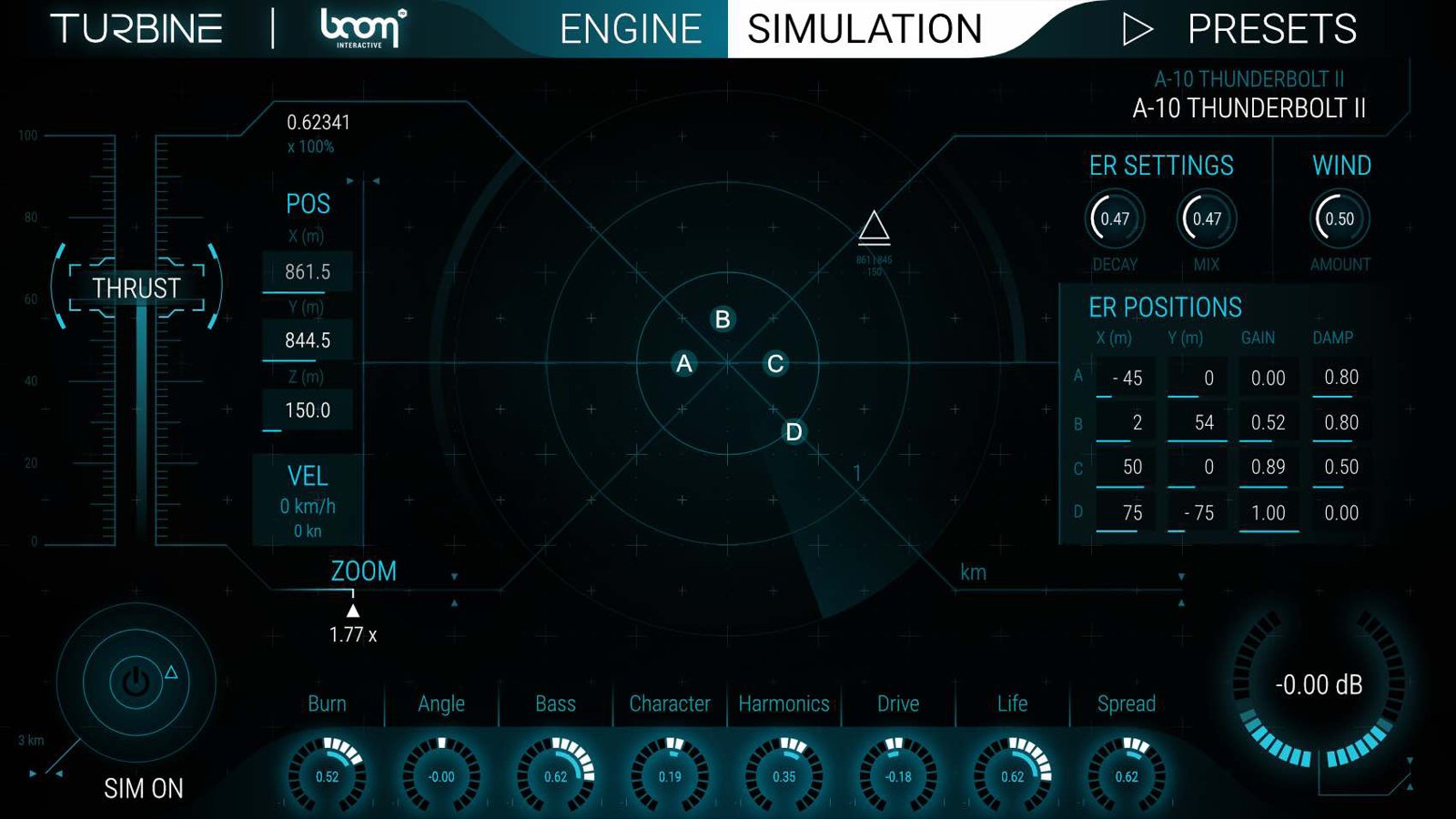

Simulation

The SIMULATION page shares a lot of controls with the ENGINE page. However the most significant element here is the big radar at the center of the screen.

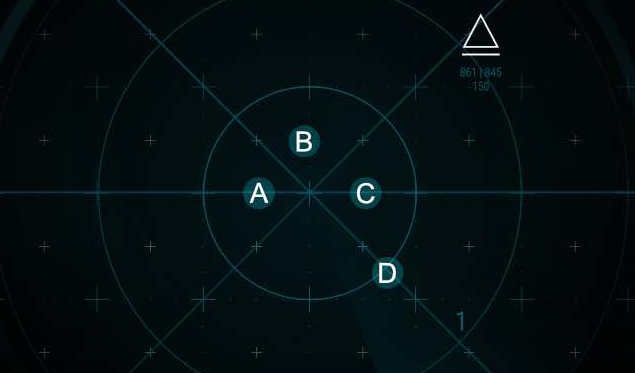

Radar

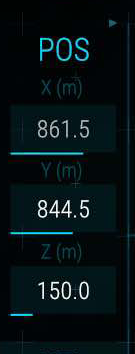

POS (Position)

VEL (Velocity, Speed)

The speed of the engine within the simulated space will be displayed here when the engine is in motion. Whenever you fly around, please make sure to have reasonable speeds or expect rather experimental outcomes (which is fine if it suits your needs of course). The display shows kilometers per hour (km/h) and knots.

ZOOM

White Dot and Arrow

ER Settings

ER = Early Reflections, whereby “early” in these dimensions is pretty far away compared to studio reverbs. There are four sound reflecting obstacles that can help to get a better sense of the engine’s position during movement and to create a more natural environment. You can alter the settings of those in several ways. These ERs basically work like delays which you can place in the room.

ER Decay

The feedback of the ERs. Be aware that each ER only bounces off of the other ERs, so feedback does not mean each ER feedbacks itself. You rather set the material the reflecting surfaces are made of, determining how reflective they really are.

ER Mix

Allows you to change the mix of the ERs compared to the original, dry engine output.

ER Positions

You can alter the X and Y coordinates in meters for each of the four reflective obstacles as well as the gain and damping. The maximum distance of each ER is a bit less than 100m (X=70m, Y=70m). You can also change the position of the obstacles within the radar. Simply left click and hold one of the ERs A, B, C or D and move it around.

ER Gain

It is possible to mix the ERs differently. In most scenarios, the further away one ER is, the less gain you want to set here. But, of course, this is a matter taste.

ER Damp

It is also possible to alter the individual feedback behavior independently from the general ER DECAY parameter. ER DAMP in combination with ER GAIN can simulate different materials or sizes of each of the four ERs A, B, C and D.

Wind

To the right of the ER DECAY and ER MIX settings you will find another parameter, called WIND. This lets you lower or strengthen the Lorenz-attractors that result in wind modulation of the engine in the simulated space.

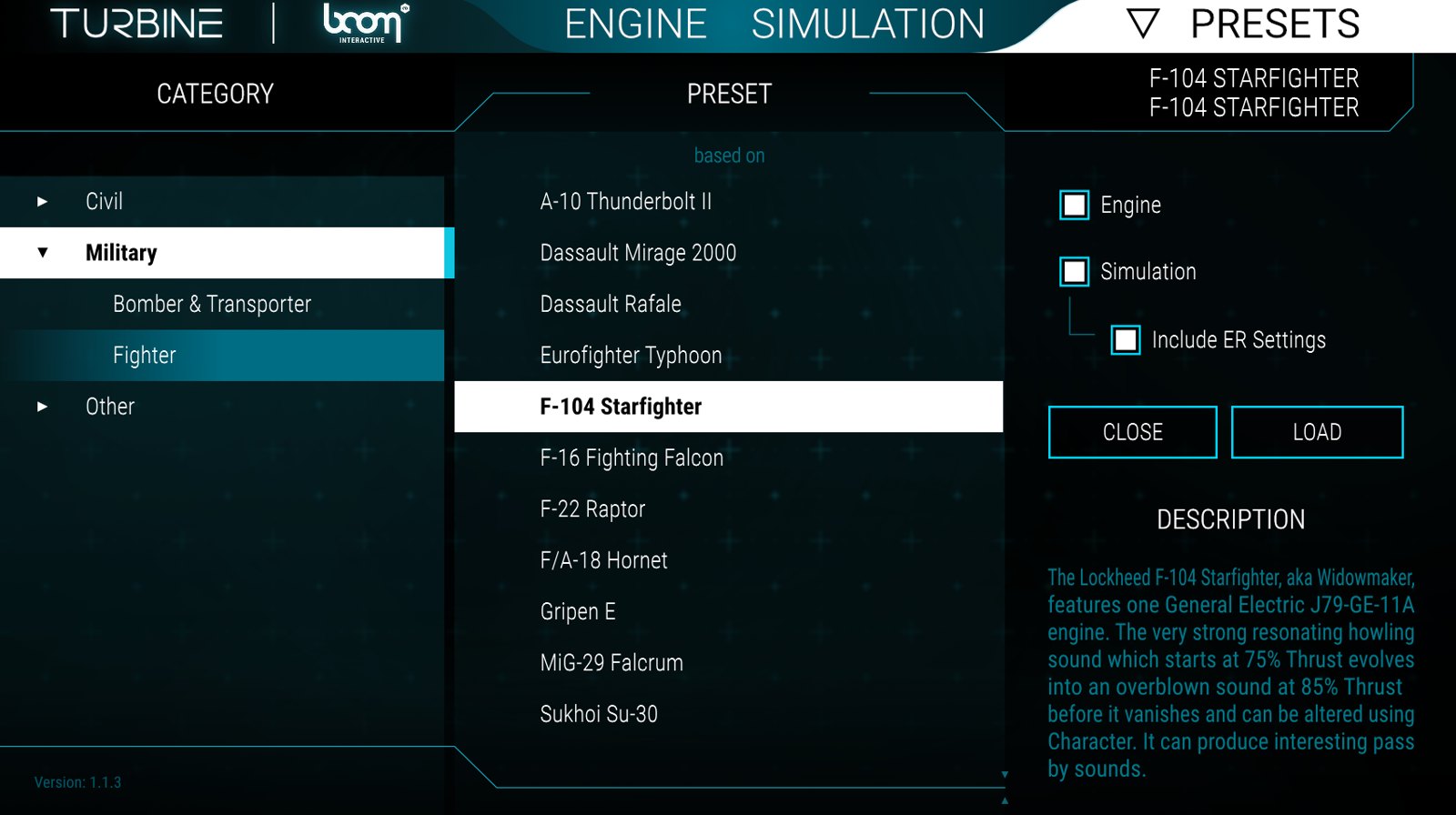

Presets

The PRESETS browser allows you to browse through categories and load either an ENGINE or SIMULATION setting or both simultaneously.

The status of what is currently being loaded can be seen at the upper right corner of the PRESET page. ENG stands for ENGINE and SIM for SIMULATION.

Tips and Tricks

General

Smooth Behavior vs. Audible Steps

To achieve the smoothest sound behavior, use automation instead of mouse inputs. The resolution of automation is much higher compared to mouse inputs. When you first start raising the THRUST via mouse input and you hear steps, this is not because the resolution within the TURBINE is not high enough, it simply is because the resolution of the mouse input may not be high enough and you should use automation instead.

Engine

Startup Speed

It cannot be emphasized enough: The impression of size is primarily a result of the acceleration (increase of RPM) during the start up phase of the engine. A vacuum cleaner or hair dryer will be at full THRUST within seconds, reaching up to and above 100,000 rpm. There is no plane turbine engine that will even reach such a high rpm count. Use the THRUST lever with caution.

As a basic rule: a fighter jet engine start-up from 0 rpm to idle which is mostly around 50 % to 60 % THRUST will take between 30 and 60 seconds. If your scene is shorter, try to use the same start-up speed but less range of the THRUST. To test a slow power-up or down, you can drag one of the decimal points of the THRUST value up or down. The decimals further right allow finer adjustments, resulting in a more precise and smoother sound.

Description

Read the preset description carefully, especially for the CHARACTER parameter there sometimes are interesting sound shaping possibilities. If resonances can be altered, the reason mostly is that the resonances only occur on load, for example during start-up, but not off-load (during wind down).

Angle

The ANGLE parameter is independent from the angle within the SIMULATOR, so you can use this to generally alter the timbre of the sound.

Environment

Reverb helps to blend the TURBINE into a given scenario. When the SIMULATOR is not running, you basically hear the ENGINE at virtually zero distance in an anechoic chamber. Adding third party delays and / or reverb to put this engine into an environment will help to mix it into a scenario.

Processing

In general: Feel free to add more distortion with third party plug-ins, use EQs to further shape the sound, let the TURBINE stutter with tremolators, experiment with the audio output in all ways you would do with real recordings. Jet engines you hear on YouTube for example are highly compressed / limited ultimately distorted because of the devices they are recorded with. It is easy to get this impression with some distortion and plenty of limiting. What is offered in this plug-in is a turbine sound as clean as it can get.

On-Load vs. Off-Load

Yes, an airplane engine has this as well. In all presets BURN at the initial center position zero is an average value. If you want to raise the THRUST, push the BURN first a bit and then dial it back to a little above zero. Before you lower THRUST you might want to lower BURN to below zero, to get a nice and less powerful / noisy wind down.

Starting Multiple Engines

The B52 super fortress, a huge beast of a flying machine, has eight engines under its wings to give an example. In reality they all start one after another and not simultaneously. The same actually applies to planes with only two engines. If you really need this, you can certainly instantiate several TURBINE plug-ins to get the correct start-up procedure. We would then recommend to lower the SPREAD and rather pan the instrument tracks. For as much as eight engines, you might want to go completely mono and melt them together with some third party outdoor reverb / delays.

Simulation

Movement Speed

At the risk of repeatedly repeating ourselves, faster is not always better or more powerful. Always keep realistic speeds in mind (see PRESET descriptions), or at least speeds that make sense in your scene.

Altering Speed

Let’s say your plane moves from the far left to the far right at a constant distance of 250 meters in front of you at 250m height at a constant 500km/h speed. Now you think this is boring and you want to alter the speed, but the X coordinates suit the scene perfectly. There are two ways:

• Set an automation point at the closest spot on the Y or Z axis and raise the distance of one of them for the far left and far right position. The result will be that the engine has to cover a larger distance to be at the same position at the closest spot.
• You have set a full X / Y complicated flight path which you really like. Now you are not satisfied with the speed. You can use the Z axis in the same way to alter the speed without touching the X / Y coordinate automation.

More Modulation

We implemented a pretty complicated and – in a positive and natural sense – chaotic wind modulation based on the Lorenz system. However, this might still sound boring. Partly because not only the wind alters the sound of a moving airplane. What probably all of you know is the sound of an approaching airplane, ready to touch down on an airfield. There might be a constant wind up and wind down depending on the situation. Use the THRUST and automate it on top of the movement simulation to get more modulation into it.

But that is by far not everything you can do. Try to automate all those parameters at your disposal within the TURBINE, remove bass when the plane approaches and add bass when it passed the listener position. Give it more or less tonal elements during a pass using the ANGLE, alter the mixes of the stages Nx to get the well-known wobbling effect. Simply put: go wild with automation if needed.

Or possibly you want something more controllable? Then set the WIND on the SIMULATION page to zero, lower the LIFE parameter to minus 1, do not automate any other parameters except X / Y / Z parameters.

Delay / Smoothing Values

As mentioned before, there are several parameters to calculate mathematically only after it happened which results in the speed, distance, position (X / Y / Z), Doppler status and direction and a natural acoustic behavior of the ENGINE in motion. This smoothing is exponential and takes about 500ms. This is no latency, this smoothing is needed in order to avoid unrealistic acoustic behavior.

Host Specific

Logic Pro

TURBINE Fades Out

In Logic the instrument tracks behave a bit different compared to other hosts. When you select a track without a TURBINE on it and hit stop after playing back or recording, the tracks with active TURBINES will fade out to minus infinite dB until you play back again. When a track with a TURBINE active is selected and you hit stop, this specific TURBINE will still make sound even after you hit stop.

Pro Tools

TURBINE Not Available

In Pro Tools you can use the TURBINE on either an instrument track or an audio track. However, these tracks must be stereo (or quad) tracks in order to show the TURBINE in you plug-ins. You will find it in the insert/multichannel plug-in/Instrument/ folder when inserts are sorted by categories or in the insert/multichannel plug-in/BOOM Interactive/ folder when inserts are sorted by manufacturer.

Postface

Final Thoughts

We used several terms related to the engine in a more commonly understandable way instead of a fully technically correct sense. Some examples:

A turbine is in fact only a small part of the engine; there are also one or more fans, several compressors and the combustion chamber.

We also always use a 100% Thrust as a maximum. In fact, our 100% is already the maximum rpm the specific engine on a specific airplane can reach. Normally an engine can stand more than 100% rpm for a short amount of time (often around two minutes), for example for starts. Assuming this is 104% for one spool, this equals 100% THRUST in our plug-in.

Not even the percentages you see in our plug-in might be entirely correct. In reality the shafts do not wind up at the same speed and possibly do not have the same rpm at any given moment plus the shaft speeds are often independently controllable by the pilot. If you need more specific results, you can always use TURBINE plug-ins, mute N2 on the first one and N1 on the second one using the same PRESET and control them individually. But remember, the shafts Nx in the Turbine do not necessarily rise in a linear way.

There are four main types of gas turbine engines and we reproduce two of them: Turbofan and turbojet engines.

We tried very hard to make a highly advanced technical topic as easy to use and easy to understand as possible. This means, if you are a real gas turbine geek, you will find things that technically are not perfectly accurate. Feel free to contact us; I am confident that we have thought about it and exchanged correctness for usability on purpose. Also feel free to contact us for custom engine sound design. We are always open for that.

Lastly, here are some thoughts on you can use the TURBINE (just some examples where turbine sounds have been used in the past):

• You can create some nice whooshes for general use and highlights in totally non-turbine related situations using the SIMULATION.
• Check out science fiction vehicles, wheeled or winged. Most likely you will hear turbine sounds at least as a layer.
• Any car can be accelerated with turbine sounds, simulating a super charger.
• Robots’ movements, small and large, can be supported with turbine sounds.
• Current or future machinery in general.
• Room tones can be created with the industrial turbines (or any other suitable engine).
• Remember the famous race one of the biggest SciFi franchises? Most of those vehicles are combinations of turbine recordings and a wild combination of other sound sets.
• All kinds of spaceships are great with some support of turbine-ish sounds.
• Trailer music, trailer rises, trailer highlights – a very typical scenario to use rising turbine material.

We hope you have a lot of fun using this plug-in and produce some amazing sounds for mind blowing productions.

Sincerely yours,
The BOOM Interactive Team
